Strapping Machines
Strapping Machines
FROMM has a comprehensive range of fully automatic strapping machines. The machines cover a wide range of applications in the most diverse industries. They are built to customer specifications in order to satisfy in the exact requirements. Our specialists around the world will help you to find your best solution.
Automatic Plastic Strapping Tools Machines
Model: EFB
Economic semi-automatic strap feeding system.
Strap qualities: Polyester (PET) and Poly propylene (PP) - machine grade
Tools recommended: P318, P326, P327, P330, P350, P355, P356
Strapping dimensions: 12.0 – 32.0 x 0.50 – 1.27 mm
Feeding units: E101 pneumatically operated
Dispensers: KB2 with brake for standard strap coils (25 kg)
Model: EFP
Semi-automatic strap feeding system for Plastic Strapping Tools.
Strap qualities: Polyester (PET) and Polypropylene (PP)
Tools recommended: P318, P326, P327, P330, P350, P355, P356
Strapping dimensions: 13.0 – 32.0 x 0.38 – 1.27 mm
Feeding units: E101 pneumatically operated E201 electrically operated
Dispensers: KB2 standard KB3 with magneto-electric brake and strap accumulator
Model: PM100 Series
Fully-automatic vertical Plastic Strapping Tools machine.
Strap qualities: Polyester (PET)
Strapping heads: MH600 / MH610
Strapping dimensions: 13.0 – 32.0 x 0.40 – 1.53 mm
Strap tension: max. 7000N
Sealing method: Friction weld
Average seal strength: up to 85%
Tension speed: 105 mm/s
Power consumption: 1.1 KWH
Max. package size: W 3000 x H 3000 mm
Min. package size: W 150 x H 180 mm
Model: PM200 Series
Fully-automatic vertical moving Plastic Strapping Tools machine.
Strap qualities: Polyester (PET)
Strapping heads: MH600 / MH610
Strapping dimensions: 13.0 – 32.0 x 0.40 – 1.53 mm
Strap tension: max. 7000N
Sealing method: Friction weld
Average seal strength: up to 85%
Tension speed: 105 mm/s
Power consumption: 1.1 KWH
Max. package size: W 3000 x H 3000 mm
Min. package size: W 150 x H 180 mm
Model: PM500
Fully-automatic side seal Plastic Strapping Tools machine.
Strap qualities: Polyester (PET)
Strapping heads: MH600 / MH610
Strapping dimensions: 13.0 – 32.0 x 0.40 – 1.53 mm
Strap tension: max. 7000N
Sealing method: Friction weld
Average seal strength: up to 85%
Tension speed: 105 mm/s
Power consumption: 1.1 KWH
Max. package size: W 3000 x H 3000 mm
Min. package size: W 150 x H 180 mm
Model: PM800
Fully-automatic horizontal Plastic Strapping Tools machine.
Strap qualities: Polyester (PET)
Strapping heads: MH600 / MH610
Strapping dimensions: 13.0 – 32.0 x 0.40 – 1.53 mm
Strap tension: max. 7000N
Sealing method: Friction weld
Average seal strength: up to 85%
Tension speed: 105 mm/s
Power consumption: 1.1 KWH
Max. package size: W 3000 x H 3000 mm
Min. package size: W 150 x H 180 mm
Automatic Steel Strapping Machines
Model: EFS
Semi-automatic strap feeding system for steel strapping.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Tools recommended: Flat appl.: A3H, A384, A380, A383, Coils: A480, A482, A483
Strapping dimensions: 13.0 – 32.0 x 0.38 – 1.27 mm
Feeding units: E101 pneumatically operated E201 electrically operated
Dispensers: HA1 for strap sizes up to 19 mm HA3 for strap sizes 19-32 mm
Model: AM100
Fully-automatic vertical steel strapping machine.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strapping heads: M100 / MH200 / MH201
Strapping dimensions: 9.5 – 32.0 x 0.50 – 1.00 mm
Strap tension: max. 18000N
Sealing method: Sealless joint
Average seal strength: up to 80%
Tension speed: 120 mm/s
Model: Am200 Series
Fully-automatic vertical moving steel strapping machine.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strapping heads: M100 / MH200 / MH201
Strapping dimensions: 9.5 – 32.0 x 0.50 – 1.00 mm
Strap tension: max. 18000N
Sealing method: Sealless joint
Average seal strength: up to 85%
Tension speed: 120 mm/s
Model: AM500 Series
Fully-automatic side seal steel strapping machine.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strapping heads: M100 / MH200 / MH201
Strapping dimensions: 9.5 – 32.0 x 0.50 – 1.00 mm
Strap tension: max. 18000N
Sealing method: Sealless joint
Average seal strength: Eup to 80%
Tension speed: 120 mm/s
Model: AM800 Series
Fully-automatic horizontal steel strapping machine.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strapping heads: M100 / MH200 / MH201
Strapping dimensions: 9.5 – 32.0 x 0.50 – 1.00 mm
Strap tension: max. 18000N
Sealing method: Sealless joint
Average seal strength: up to 80%
Tension speed: 120 mm/s
Machine Heads For Plastic Strapping Tools
The strapping heads MH600 / MH610 can process polyester up to a width of 32 mm and a thickness of 1.53 mm. The heads provide the perfect alternative convert heavy steel strapping applications to PET Strapping.The well proven and reliable MH600 PET Strapping head is designed for strap sizes of 13 to 19mm. The new head MH610 is wordlwide the first head beeing able to process strap sizes of 25 and 32mm.
Plastic Strapping Tools Heads

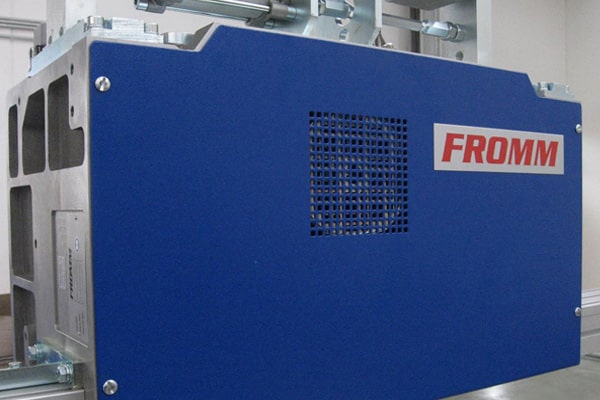

Model: MH600
All electric high tension plastic friction weld strapping head.
Strap qualities: Polyester (PET)
Strapping dimensions: 13.0 – 19.0 x 0.64 – 1.53 mm
Strap tension: max. 7000N (adjustable)
Sealing method: Friction weld
Average seal strength: up to 85%
Tension speed: 105 mm/s
Power consumption: 1.1 kWh
Dimension: L 615 x W 307 x H 450 mm
Weight: 115 kg
Model: MH610
All electric high tension friction weld strapping head for PET Strapping up to 32mm width.
Strap qualities: Polyester (PET)
Strapping dimensions: 25.0 – 32.0 x 0.60 – 1.35 mm
Strap tension: max. 7000N (adjustable)
Sealing method: Friction weld
Average seal strength: up to 85%
Tension speed: 105 mm/s
Power consumption: 1.1 kWh
Dimension: L 615 x W 307 x H 450 mm
Weight: 118 kg
Steel Strapping Heads
Model: M100
High tension steel strapping head.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strapping dimensions: 9.5 – 20.0 x 0.50 – 0.80 mm
Strap tension: max. 9000N (adjustable)
Strapping head type: Hydraulic
Sealing method: Sealless joint
Average seal strength: up to 80%
Tension speed: 2 mm/s
Dimension: L 440 x W 220 x H 450 mm
Weight: 67 kg
Model: MH200
Steel strapping head with three notch sealless joint.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strapping dimensions: 19.0 – 32.0 x 0.70 – 1.00 mm
Strap tension: max. 18000N (adjustable)
Strapping head type: Pneumatic
Sealing method: Sealless joint
Average seal strength: up to 80%
Tension speed: 2 mm/s
Dimension: L 777 x W 270 x H 810 mm
Weight: 160 kg
Model: MH201
Two notch sealless joint steel strapping head for small packs.
Strap qualities: Regular duty (Uniflex) up to 850 N/mm² High tensile (Ultraflex) up to 1100 N/mm²
Strapping dimensions: 19.0 – 32.0 x 0.70 – 1.00 mm
Strap tension: max. 18000N (adjustable)
Strapping head type: Pneumatic
Sealing method: Sealless joint
Average seal strength: up to 55%
Tension speed: 2 mm/s
Dimension: L 777 x W 270 x H 810 mm
Weight: 160 kg
Semi-Automatic And Automatic Machines
Semi-Automatic Models
Model: MP206
The most economical strapping machine model solution for low to medium volume strapping.
Strap qualities: Polypropylene (PP)
Strapping dimensions: 6.0 – 15.5 x 0.50 – 0.75 mm
Strap tension: 150 – 450 N (adjustable)
Sealing method: heat welding
Power supply: 230V/50Hz, 1 phase
Power consumption: 0.25 kWh
Dimension: length 902 mm width 586 mm table height 760 - 930 mm
Weight: 85 kg
Model: MP207
The enhanced new generation strapping machine model solution for low to medium volume strapping.
Strap qualities: Polypropylene (PP)
Strapping dimensions: Strap dimensions: 5.0 – 13.0 x 0.45 – 0.65 mm
Strap tension: 80 – 450 N (adjustable)
Sealing method: heat welding
Power supply: 230V/50Hz, 1 phase
Power consumption: 0.3 kWh
Dimensions: length 850 mm width 560 mm table height 780 - 950 mm
Weight: 70 Kg
Automatic Models
Model: PM308
Economy strapping machine model for wide strapping. The most effective solution for general purpose application.
Strap qualities: Polypropylene (PP)
Strapping dimensions: 8.0 – 15.5 x 0.55 – 0.75 mm
Strap tension: 100 – 700 N (adjustable)
Sealing method: heat welding
Power supply: 230V/50Hz, 1 phase
Power consumption: 1.2 kWh
Dimensions: length 1430 mm width 620 mm table height 810
Weight: 22 Kg
Standard arch size: 850 x 600 mm
Model: PM309
Enhanced strapping machine model for wide strapping. The most powerful solution for general purpose application.
Strap qualities: Polypropylene (PP)
Strapping dimensions: 8.0 – 12.0 x 0.55 – 0.70 mm
Strap tension: 70 – 700 N (adjustable)
Sealing method: heat welding
Power supply: 230V/50Hz, 1 phase
Power consumption: 1.2 kWh
Dimensions: length 1430 mm width 620 mm table height 810
Weight: 22 Kg
Standard arch size: 850 x 600 mm
Model: PM313
High-speed world-class model for wide strapping. Innovative and best price/performance ratio.
Strap qualities: Polypropylene (PP)
Strapping dimensions: 5.0 – 12.0 x 0.35 – 0.65 mm
Strap tension: 10 – 450 N (adjustable)
Sealing method: heat welding
Power supply: 230V/50Hz, 1 phase
Power consumption: 0.5 kWh
Dimensions: length 1200 mm width 650 mm table height 820-920
Weight: 157 - 166 Kg
Standard arch size: 550 x 400 mm
